CCTV Tester 4.3 Inch Video Tester Ahd Monitor for Video Surveillance AHD/CVI/TVI/CVBS RS485 PTZ Controller UTP Cable Tester

4.3 inch CCTV tester cctv video tester ahd monitor for video surveillance AHD/CVI/TVI/CVBS RS485 PTZ controller UTP Cable Tester

The new HDCCTV Test monitor support "4in1"(AHD/TVVCVVCVBS)video format of up to 2MP~8MPresolution. It also supportPTZ control by RS485 and other special features suchas DC12V/USB/5V out put, audion test,UTPcable test,LED lighting etc.lt is designed to bring installer maximum conveniecy duringthe installation.

12 Languages

Chinese, Traditional Chinese, English, Russian, Italy, Poland, Portugal, Germany, Spain, Japan, Turkey, French

Product Funtions:

▶Video input: Compatible with AHD,TVI,CVI,CVBS signalsof up to 2MP~8MPresolution.

▶.4.3 inch 480 x272 resolution.PAL/NTSC(Auto adapt).

▶PTZ control: RS485 Baud-Raud:1200~115200bps,compatible with PELCO-D/Pprotocols.

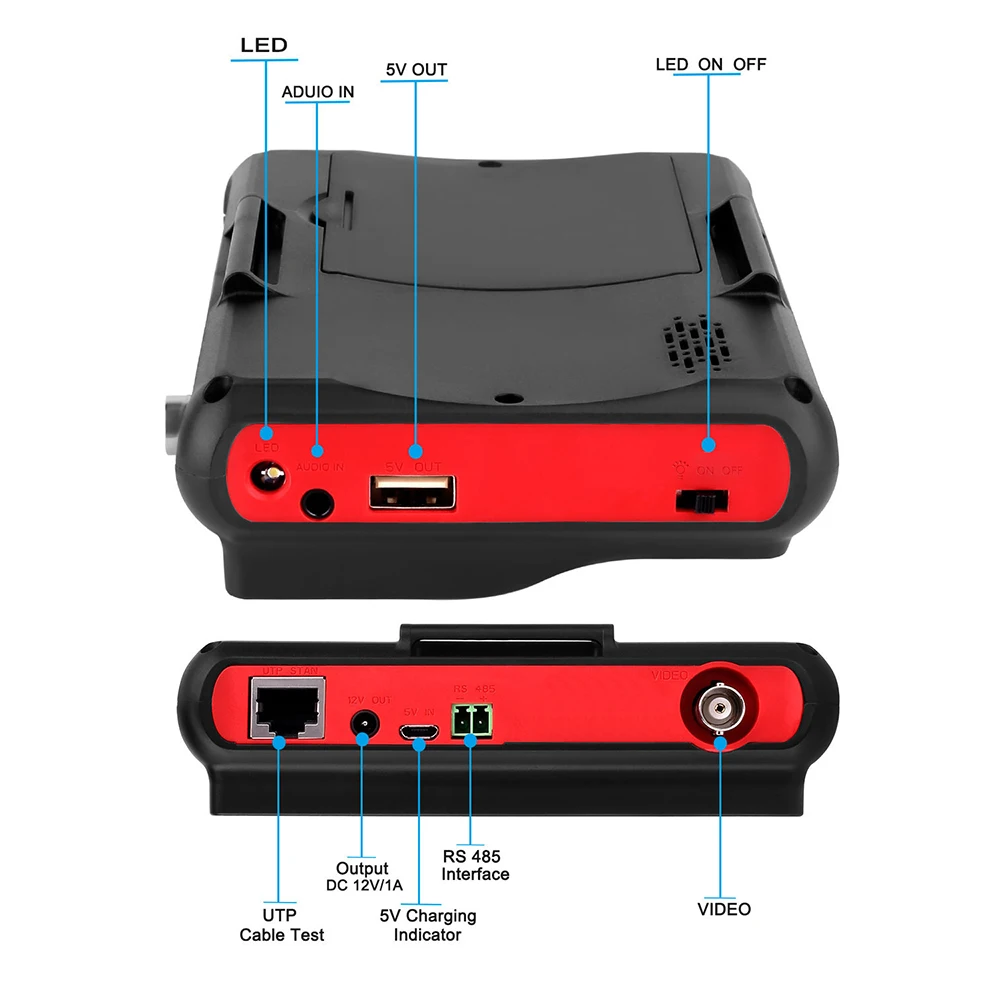

▶ Camorera Power Supply: Power output of DC 12V/1Afor temporarily powering on cameras for angle and zoomadjustment

▶.USB Power Supply.: USB2.0 interface
provides 5V/1A poweroutput

▶Audio signal input

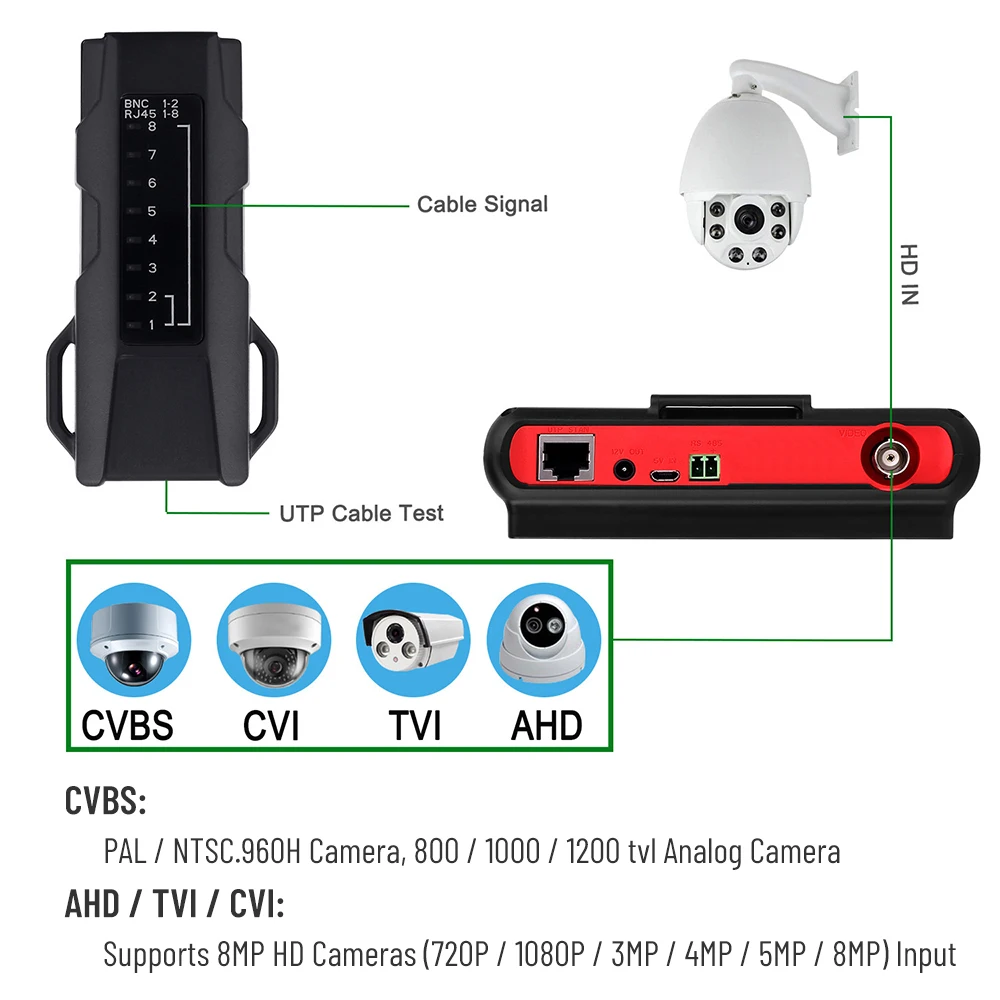

▶.Enhanced UTP cable, with indicator lights. the cable testdistance can reach 100-150 meters

▶UTC control/call OSD menu

▶Coaxial HD test
AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/8MP AHD camera tester is optional*)
TVl tester support 720P25F/30F 1080P25F/30F(3MP/4MP/5MP/8MP TVl camera tester is optional*)
CVl tester support 720P25F/30F 1080P25F/30F(4MP/5MP/8MP CVl camera tester is optional*)

▶LED emergency lighting

▶bulit-in 3.7V Lithium polymer bottery, 3000mAh

Specification

▶Display:4.3inch TFT- LCD,480X272 resolution

▶Signal mode:NTSC/PAL (Auto adapt)

▶Video lN:BNC ( Analog/AHD/TVI/cVl) signal input

▶VIDEO TEST: CVBS TestAHD TVI CVI 72OP/1080P3MP/4MP/5MP/8MP(*) Test
uTC control/call OSD menu
Audio input test

▶PTZ Controller:Support RS485,Compatible with protocolsPELco-D/P, Baud Rate 1200~14400bps

▶UTP Cable Tester:Enhanced UTPcable, with indicator light, thetest distance can reach 100-150 meters

▶POWER
DC12V output:DC12V1A power Output
Power Adapter:DC 5V/1Alnput

▶Battery:Built-in 3.7V 3000ma battery

▶Battery Life:8 hours work after full
charge(Withoutsupplyingpower to extemal devices)

▶Language:12 Languages available(Chinese, Traditional Chinese, English, Russian, Italy, Poland, Portugal, Germany, Spain, Japan, Turkey, French)
General

▶Working Temperature:10°C-+50°c

▶Working Humidity:30% - 90%

▶Dimension/Weigh:38mmx 103mm x 41mm /0.5kg

packing list
